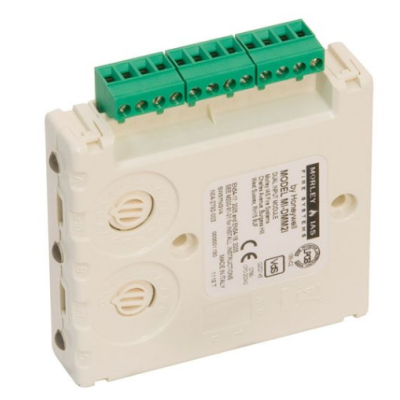

Morley-IAS MI-DMM2IE. Monitor module of 2 inputs Monitor module of 2 inputs.

Key Features

• Addressable monitor module for MorleyIAS analog system, with two supervised inputs for signaling external equipment states that provide a normally open contact, identifying at the control panel with a personalized message (closed door, flow detector
• Incorporates short circuit isolator
• Easy addressing through two decatic rotary switches placed both on the front of the module and on the side (accessible and visible in DIN rail mounting)
• It occupies two consecutive addresses
• It has two three-color LEDs for each input (green: flashes when the device is asked; red: fixed in alarm; yellow: flashes due to a fault in the input circuit)
• Connection via removable terminals (up to 2.5mm2 section)
• Multiple mounting possibilities: On the surface by means of M200SMB or SMB6-V0 box, on DIN rail by means of M200DIN adapter or on panel by means of M200PMB support
• Requires M200E-SMB for surface mounting
