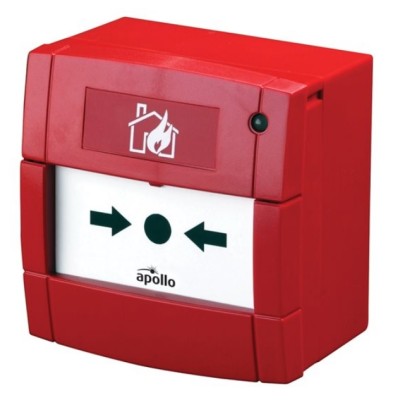

Apollo 55100-021MAR Conventional Marine Manual Call Point

Apollo 55100-021MAR Conventional Marine Manual Call Point

The Conventional Marine Manual Call Point has been designed to operate on conventional marine fire detection systems. The Manual Call Point has an easily resettable element rather than a break glass. This call point is supplied with a backbox for surface mounting. It also features a unique ‘Plug and Play’ installation concept designed specifically to reduce installation time. The call point utilises a terminal block, where all installation cabling is terminated. The red Manual Call Point is approved to EN54-11 standard and Marine Equipment Directive 96/98/EC.

The Manual Call Point consists of a 470ohm resistor in series with a normally open switch contact. The Manual Call Point helps reduce installation time as all the initial installation cabling is wired to a terminal block which connects neatly to the call point. Once activated, the manual call point can be reset by inserting the test key into the bottom of the unit until the key clicks into position. Remove the test key and push the front cover up until it clicks home.

Key Features:

• EN 54-11 Certified
• ‘Plug and Play’
• Terminal connections for faster wiring
• Continuity link for wiring test before commissioning
• Suitable for semi flush or surface mounting
