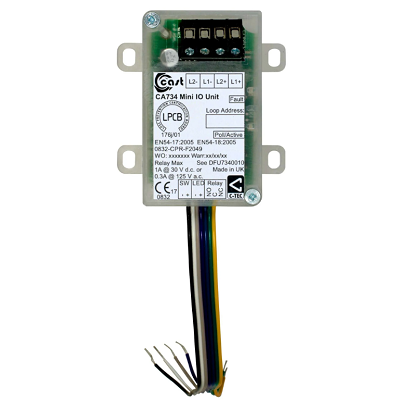

C-Tec CA734 CA Mini Input Output Module

C-Tec CA734 CA Mini Input Output Module

The C-Tec CA734 is a CA Mini Input Output Module using the C-Tec CAST analogue addressable protocol.

‘CAST’ is the world’s most-advanced ‘distributed intelligence’ fire alarm system protocol. Conceived, designed and realised by C-TEC as part of a five-year, multi-million pound project, it involved the creation of a powerful proprietary communication protocol (C-TEC Addressable System Technology, CAST) and multiple control panels & field devices.

Key Features

• LPCB certified to EN54-17 & 18 and Kiwa Telefication certified to EN54-13
• Includes a switch monitor, signal relay and onboard loop isolator
• 7mA typical alarm current (1mA typical quiescent current) @ 22-40V DC
• Four plastic tabs for surface or panel mounting
• Includes a 1A 30V DC volt-free changeover relay. Can also switch 0.3A @125V AC
• Offers Switch +Ve, –Ve, LED +V, –Ve and changeover relay connections
• Future header pin offers expansion opportunities for peripheral I/O devices
