Kidde Airsense EST-ISLE Audio / RS485 Interface
- Part Number: EST-ISLE
- Categories: Accessories and Ancillary (Evacuation Voice Communication / Disabled Refuge System / PAVA)
- £206.38 (£247.66 inc VAT)

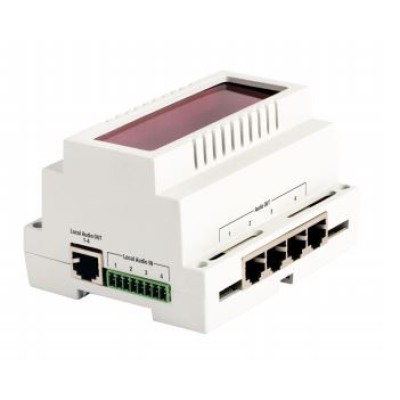

Kidde Airsense EST-ISLE Audio / RS485 Interface
The EST-ISLE is both a communication module enabling integration with external systems via RS485 protocol, and an audio signal splitter.
Address settings – Number of addresses in the range of 0-F (16 addresses).
Local AUDIO IN – 4 input channels on the 8-pin connector. For easier and faster connection of audio sources, Phoenix-type connectors can be used. LOCAL AUDIO IN jack (8 pin connector Phoenix) is bridged with LOCAL AUDIO OUT (RJ-45). Output amplifiers – RJ-45 connector for the 4-channel amplifier.
Local AUDIO OUT – RJ-45 connector for input signals to the system.
PSM – RJ-45 connector for the link with power manager.
