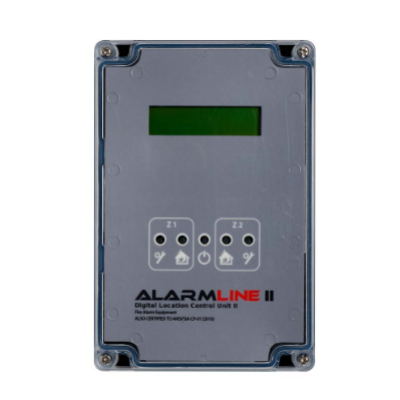

Kidde Airsense ADLCU-2 AlarmLine II Dual Zone Digital Location Control Unit

Brand: Kidde

Part Number: ADLCU-2
Categories: Linear Heat Detection Controllers (Linear Heat Detection (LHD))

£619.38 (£743.26 inc VAT)

Kidde Airsense ADLCU-2 AlarmLine II Dual Zone Digital Location Control Unit

The digital location control unit is a dual zone module for monitoring up to two zones of AlarmLine Digital Linear Heat Detection Cable. If an overheat or fire situation triggers either zone of the digital cable the unit automatically calculates and displays the distance along the cable, in feet and metres, to the alarm point.

The two zones can operate independently of each other, or in interlock mode. A separate alarm and normally conducting fault output are provided for each zone. The unit is intended to be installed between the AlarmLine digital linear heat detection cable and a conventional or addressable fire alarm control panel. It has power, fault and alarm indicators, as well as free outputs for fault and alarm, corresponding to each zone. It may also be connected to a industrial process control system using the two wire RS-485 Modbus RTU output.

Modbus communication

The unit includes a two wire RS-485 Modbus output which can be enabled to output the status of each zone of the digital location control unit, via Modbus RTU/ASCII protocol. In case of an alarm, the location (in distance along the cable) is also communicated via Modbus.

Interconnecting cable

The unit supports the use of a interconnecting cable (leader cable) in between the control unit and the linear heat detection cable. The interconnecting cable is used in applications where the control unit is not located in the detection zone. The interconnecting cable is then used to connect the control unit in one location, with the linear heat detection cable in the protected area. The interconnecting cable is available in 100m lengths, under the product code AAI-0100.

Key Features
