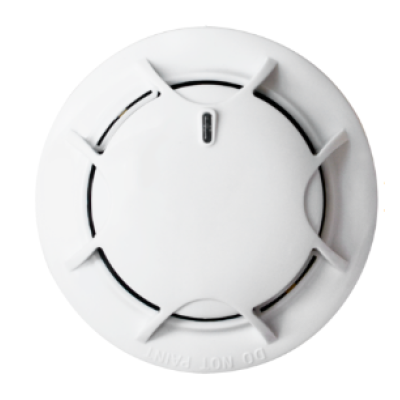

Kidde NC-DPO-W Conventional Point Detector - Optical (White)

Kidde NC-DPO-W Conventional Point Detector - Optical (White)

The DC-9102E is a photoelectric (optical) detector suitable for use in hotels, restaurants, office buildings, schools, banks, warehouses, libraries, computer rooms, switch rooms, etc.

Application

The detector supports installation on the GST DB-01 conventional detector base for standard applications, or the GST DB-01D diode base when head-out functionality to BS5839 standard is required. Detection sensitivities are programmable using the GST P-9910B device programmer.

Key Features:

• Supports drift compensation to enable good environmental adaptability
• Self-diagnostic
• Local test activation with reed switch
• Chamber contamination checking
• All round LED visibility (360° viewing angle) avoids time spent on specific detector orientation
• Configurable polling LED support
• Remote indicator output
• Removable sensing chamber for easy maintenance
• 2 Programmable smoke sensitivity levels
