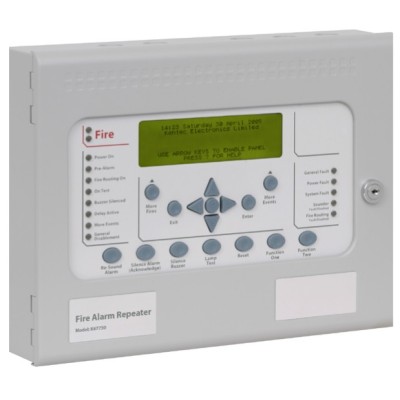

Kentec K67751M1 Syncro View Local LCD Repeater Panel: c/w Enable Keyswitch & PSU

Kentec K67751M1 Syncro View Local LCD Repeater Panel: c/w Enable Keyswitch & PSU

The Syncro View fire alarm repeater provides a cost effective, simple and convenient method of extending the controls and indications of the Syncro AS fire alarm control panel to other locations.

The large, graphic LCD, brightness LED indicators and full set of controls duplicate the indications and controls on the Syncro AS fire alarm control panel at up to 15 additional locations via a (separate to the Syncro AS network) simple, two-wire serial data connection.

Ideal for locations where a control and indication point smaller than a full fire alarm control panel is required, the Syncro VIiew is available in either a 24V DC powered option (which can be powered via an additional 2 cores from the Syncro AS control panel auxiliary 24V DC supply) or a 230V powered option with local battery backup.

Key Features

• Up to 15 annunciators can be connected to each Syncro AS panel
• Response or Syncro AS fire control panel.
• Large liquid crystal display (240 x 64 pixels)
• High brightness LED indications
• Internal sounder
• Replicates all Syncro panel controls
• Simple, two-wire serial connection
• Small enclosure
• Removable electronics for easy installation
• 24V DC or 230V AC power options
• Low power consumption
• Multi language options
• Connection monitored by Syncro fire control panel
