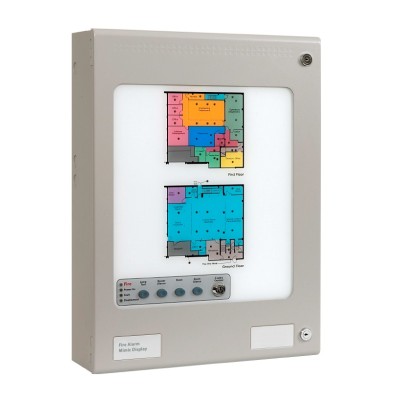

Kentec Syncro Matrix Surface Fire Alarm Mimic Display

Kentec Syncro Matrix Surface Fire Alarm Mimic Display

The Syncro Matrix system uses flexible, fibre optic light guides to illuminate areas on a floor plan, laid over a high resolution grid. This unique system dispenses completely with wiring and enables indicators to be moved, removed or added on site without the need for any wiring. All indicators can be configured to operate upon any event type and at point, zone or group level via Kentec’s powerful and intuitive Loop Explorer configuration programme.

Syncro Matrix can be supplied with or without LEDs and controls. Optional LEDs indicate Power on, Fire, Fault and Disablement and optional controls are for Alarm silence, Buzzer silence, Lamp test and Reset. Housed in attractive, slimline enclosures to match Syncro and Syncro AS fire alarm panels and with high quality, full colour or monochrome floor plans, Syncro Matrix provides a clear, geographical indication of fire alarm activation enabling speedy identification of the source of an alarm.

Key Features:

• Up to 504 LED’s can be controlled from any Syncro or Syncro AS panel
• Full colour printing
• Available in a range of standard enclosures to suit any applications
• Bespoke sized units can be made upon request
• Choice of Red, Green or Yellow LED’s
• Available with or without controls
• Same look and feel as Syncro range
• Syncro Matrix can easily be upgraded on site with minimal cost and effort
• EN54-4 approved PSU (optional)
• Configured via standard Loop Explorer Software

Comes in 4 different sizes:

• M2 - Width 385mm x Height 310mm x Depth 90mm
• S3 - Width 500mm x Height 355mm x Depth 117mm
• M3 - Width 385mm x Height 520mm x Depth 110mm
• S4 - Width 500mm x Height 650mm x Depth 137

Other Options Available:

• Standard
• Comes with Controls
• Comes with 4amp PSU
• Comes with Controls & 4amp PSU
