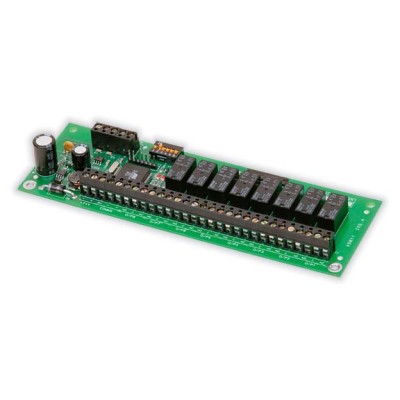

Kentec K547 Syncro I/O - 8 Way Relay Extender Board Expansion Board With 8 Volt Free Relay Outputs

Kentec K547 Syncro I/O - 8 Way Relay Extender Board Expansion Board With 8 Volt Free Relay Outputs

To further enhance the versatility of the Syncro fire alarm system, additional relay output capability can be added using Syncro relay boards. These boards have 8 voltage free changeover relay contacts, each of which can be individually programmed. Up to 32 of these boards can be connected to the dedicated RS485 communications bus in the control panel giving the capability of up to 256 additional relay outputs. Consideration must be taken as to the loading on the main panel.

Key Features

• 8 volt free changeover relay contacts (1Amp 30V DC)
• Relay operated indications
• Remote connection to panel via RS485 serial bus
• Common footprint to other Syncro I/O board types
• All outputs programmable for cause and effects
• Can be used with other Syncro I/O modules on the same panel
• Compatible with Syncro AS panels
