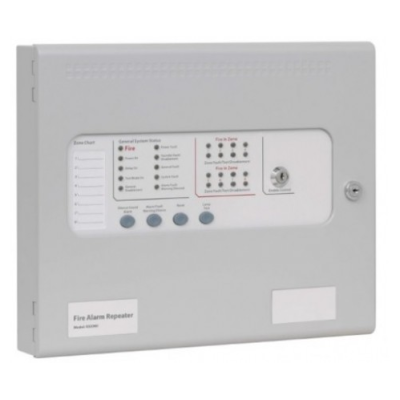

Kentec Sigma CP-R 24v Repeater Panel with Low Profile Enclosure - 2 Zones
- Part Number: E01020L2
- Categories: Panels (Conventional Fire Alarm Equipment)
- £172.47 (£206.96 inc VAT)
Available Options
Kentec Sigma CP-R 24v Repeater Panel with Low Profile Enclosure - 2 Zones
The E01020L2 is a 2 zone Sigma CP-R Conventional Repeater Panel which is compatible with all Sigma
CP control panels which have operating software version V2.0 or above.
Repeaters are also available with 2, 4 or 8 zones and in mains powered (K versions) or 24V powered (E versions). Mains powered repeaters require only a two core data cable from the main control panel. 24V DC versions require an additional two cores for power either from the main panel or from another 24V DC source.
A mixture of Repeaters, Ancillary boards or Sounder Boards up to a maximum of 7 of each type can be connected to a control panel and each is allocated an address from 1 to 7 using a binary coded DIL switch. The total length of the data cable from the main panel to the last repeater must not exceed 1200 metres.
Key Features:
- Two wire serial connection
- Up to 7 panels per system
- 230V AC or 24V DC powered versions
- Full control over main panel
- Volt free fire and fault contact outputs
Kentec Sigma CP-R - Data Sheet (279.66KB)
Kentec Sigma CP-R - Product Manual (322.27KB)
