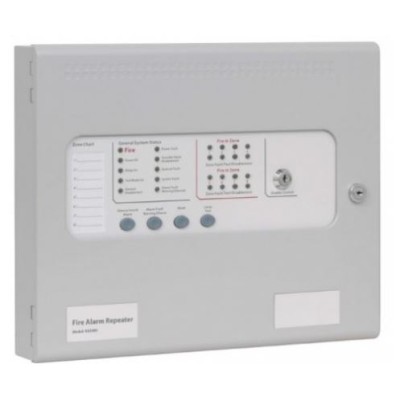

Kentec K01040M2 Sigma CP-R 4 - Zone Conventional Repeater Panel with PSU2

Kentec K01040M2 Sigma CP-R 4 - Zone Conventional Repeater Panel with PSU2



The Sigma CP-R Repeater is compatible with all Sigma CP control panels which have operating software version V2.0 or above. Repeaters are available with 2, 4 or 8 zones and in mains powered (K versions) or 24V powered (E versions). Mains powered repeaters require only a two core data cable from the main control panel. 24V DC versions require an additional two cores for power either from the main panel or from another 24V DC source.



A mixture of Repeaters, Ancillary boards or Sounder Boards up to a maximum of 7 of each type can be connected to a control panel and each is allocated an address from 1 to 7 using a binary coded DIL switch. The total length of the data cable from the main panel to the last repeater must not exceed 1200 metres.



Key Features:

• Sigma CP-R Two wire serial connection

• Up to 7 panels per system

• 230V AC or 24V DC powered versions

• Full control over main panel

• Volt free fire and fault contact outputs

• Ancillary PCB Two wire serial connection

• Up to 7 boards per system

• 230V AC or 24V DC powered versions

• Open collector zonal fault outputs

• Volt free fire, coincidence, and common fault contact outputs
