Tyco 514.001.062 IF800Ex Interface Module

Tyco 514.001.062 IF800Ex Interface Module
Brand: Tyco

Tyco 514.001.062 IF800Ex Interface Module

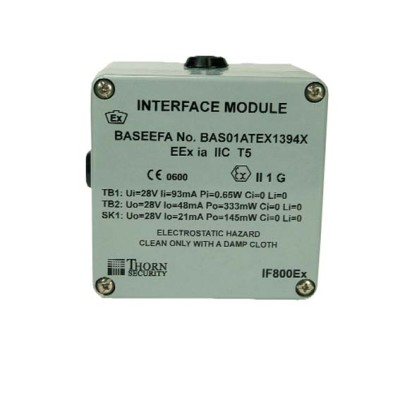

The Intrinsically Safe IF800Ex Interface Module is designed to monitor fire contacts such as extinguishing system controls, ventilation controls, fire door controls etc. The IF800Ex is contained within a grey compression moulded glass filled polyester box with 3 x 20 mm cable gland holes. The electronic components are mounted on a double sided printed circuit board built into a potted module formed from a plastic moulding. Connectivity is via two terminal blocks fitted to the PCB. The interface module is designed to comply with EN/IEC 60079-0:2006, EN/IEC 60079-11:2007 and EN/IEC 61241-11:2006 for intrinsically safe apparatus.

Key Features:

  • ATEX/IECEX certified intrinsically safe system Ex II1GD
  • Suitable for use in Zone 0, 1, 2, 20, 21 and 22
  • Fully intrinsically safe MX Digital addressable system 800 with MINERVA® MX Fire Controllers
  • Allows flexible installation and system design
  • Detector circuit and sounder circuit monitoring maintained throughout the system
  • Unrivaled range of I.S. field devices for MX Digital addressable applications
  • Complies to EN54-7 for Smoke Detectors, EN54-5 for Heat Detectors, EN54-11 for Call Points and EN54-18 for I/O Devices
