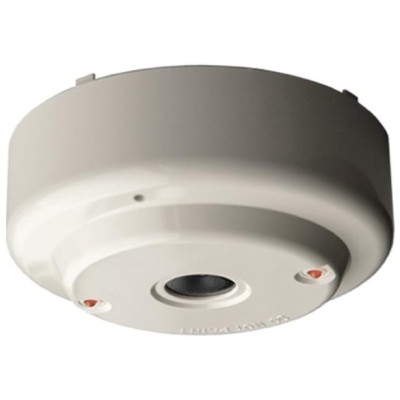

Hochiki Marine Conventional Infrared Flame Detector (DRD-EM)

Hochiki DRD-EM Marine Conventional Infrared Flame Detector

The DRD-EM is a marine-approved flame detector designed for internal use to detect large flames. The detector fits the CDX marine-approved standard mounting base (YBN-R/6M). The detection zone is a 90° cone and the detection range is up to and including 25 m.

The flame detector is designed for use where open flaming fires may be expected. It responds to the light emitted from flames during combustion. The detector discriminates between flames and other light sources by responding only to particular optical wavelengths and flame flicker frequencies. This enables the detector to avoid false alarms due to such factors as flickering light sources.

The DRD-E detector can detect IR radiated from flames. Flames radiated from a fire have an IR peak emission of 4.3um occurring during the CO2 formation due to the combustion of hydrocarbons from 2 to 15 Hz.

Key Features:

• Class 1 performance as defined in BS EN54-10:2002 (range up to 25 m)
• Single IR technology
• Robust and slim design
• Low current consumption
• Easy to install
• Fits the CDX marine-approved standard base
• Twin LEDs for 360° view
• Approved by LPCB & VdS
• Approved to MED by GL
• SIL Level 2 approved variants

Applications:

• Coal handling plant
• Aircraft hangars
• Automotive industry - spray booths, parts manufacture
• Pharmaceutical
• Engine rooms
• Waste handling
• Power plants
• Transformer stations
• Petrochemical
