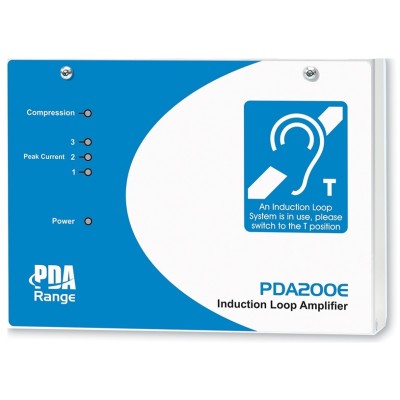

C-Tec PDA200E Wall Mounting Hearing Loop Amplifier (200m2)

C-Tec PDA200E Wall Mounting Hearing Loop Amplifier (200m2)

The PDA200E is a wall-mountable hearing loop amplifier capable of driving a perimeter loop of up to 200m2.

Key Features:

• Internal drive, level and metal compensation controls.
• Two balanced / unbalanced line level inputs.
• One microphone input with 12V phantom power for electret microphones.
• Full compatibility with the Outreach plate audio input extension system.
• Fully compliant with BS EN 60118-4 when correctly installed.
• Also available in a variety of cost-effective 'AK' Range kits for ease of purchase, specification and installation.

Technical Specification:

• Induction Loop Type: Wall mounting, requires fixed mains wiring
• Coverage: 200m2 approx.
• Dimensions: W 273 x H 200 x D 77mm (amplifier only); 2.82kg
• Inputs: 1 x Microphone, 2 x Line/Outreach
• Indicators: Input level; Power; Compression; Peak Current (3,2,1)
• Controls: Metal Compensation, Input level, loop drive
