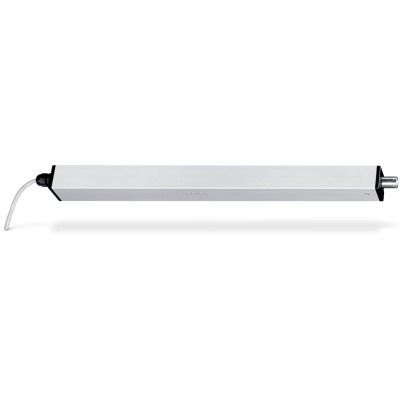

Haes E250NT Linear 24v Spindle Drive (1000mm Stroke Length)

Haes E250NT Linear 24v Spindle Drive (1000mm Stroke Length)

Please note: This actuator will require a bracket for installation. Please click here to view bracket choices.

Heavy and wide casements in particular can be opened and closed by the GEZE E250NT electric motor drive. Individual speeds can be set for ventilation mode.

Key Features:

• Can be used both for heat and smoke extraction (24V) and for natural heat and smoke extraction systems in accordance with EN 12101-2 as well as for natural ventilation (230V using a mains adaptor)
• Available in stroke length versions 300, 500, 750 and 1000 mm
• Intelligent electronics: continuously adjustable drive stroke and individual speeds for the ventilation and RWA modes
• Integrated synchronised module: true synchronisation of up to 3 drives with no external control device
• DIP switch to adjust control mode (solo and synchronic, master, slave)
• Console programme for bottom, top and pivot hung casements, skylights and light domes

Technical Information:

• Type of window: Bottom hung, Top hung, Side hung, Roof light
• Opening width/stroke (mm): 300/500/750/1000
• Tension (N): 750
• Pressure (N): 750
• Space of frame (mm): Dependant on type and console
