Global Fire Zone LED Board for 32 Zone or 16 Fault / 16 Fire

Please note: This product is now obsolete, if you require any further information please Contact Us directly.

Global Fire Zone LED Board for 32 Zone or 16 Fault / 16 Fire

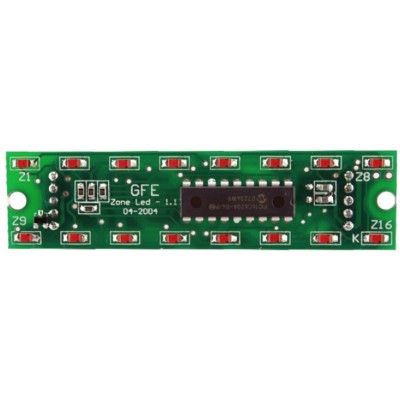

An interface card that provides a LED indication of a Fire / Fault condition for each individual zone. The Red LED indicator will be ON when the zone is in Fire condition. Can be used with any of GFE's addressable panels.

This module operates in three different modes:

• 16 Zone Blocks - Indication of Fire for each zone in the range 1 to 384
• 8 Zone Blocks - Indication of Fire and Fault for each zone in the range 1 to 384
• System Status - Each LED output is assigned to a specific System Status indication: Fire, Fault, Pre-Alarm, Test, Disabled, Sounders ON, Auxiliary Outputs and Sounders Disabled

The module requires a connection to either JUNO NET or JUNIOR Panels via a 5 way flat cable fitted with polarised connectors. And it should be connected to the MPX output of either panel.
