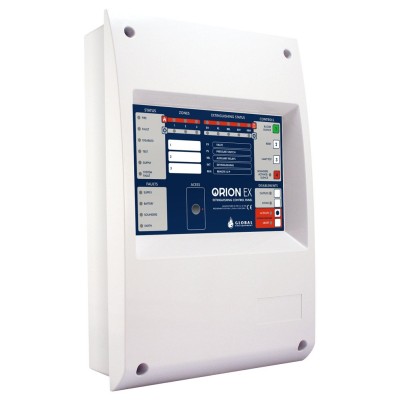

Global Fire ORION EX 3 Zone Extinguishing Control Panel

Please note: This product is now obsolete, if you require any further information please Contact Us directly.

Global Fire ORION EX 3 Zone Extinguishing Control Panel

The ORION EX Conventional Fire Detection and Extinguishing Panel offers a creatively designed and aesthetically pleasing solution to satisfy the growing world demand for dependable Fire Suppression Systems. The ORION EX is designed and manufactured to comply with EN54-2, EN54-4 and EN12094-1. The outstanding programmable features included in this panel are best suited to be installed in expensive housing areas and in general in all areas where loss of equipment can partially or totally disrupt the proper functioning of a business.

Operation is extremely intuitive, offering simple control and one-button disablement facilities, as well as the one man test mode which provides simple and efficient testing of the system. Advanced configuration solutions include the following: programmable pre-release and extinguishing times, electro valve and flow switch status indications, manual and abort remote activation. There are 3 normal fire detection zones. All inputs are fully monitored for both Fire, Activation and Fault Conditions.

Plans are under way to further complement this new range of extinguishing devices. Devices such as repeater panels, addressable system interfaces, I/O expansion boards as well as manual/abort call buttons for remote connection are just some of the additions to this range.

Key Features:

• 3 Fire Detection Zones, with Zones 1 and 2 linked with extinguishing cycle
• Up to 32 conventional smoke and/or heat detectors per Zone
• Active End of Line monitoring (10uF/50V bipolar capacitor) for Zones
• Programmable Pre-Release and Extinguishing times
• Remote Manual Activation and Remote Abort Input
• Electro valve and Pressure Switch Status Indication
• One man test
• Supervised auxiliary 24 volt supply output
• 2 Supervised/monitored output circuits
• 2 Remote inputs used for activation of Evacuation and Reset
• 2 Relay outputs fire and fault with status indication
• Fully EN 54-2, EN54-4 and EN 12094-1 compliant
