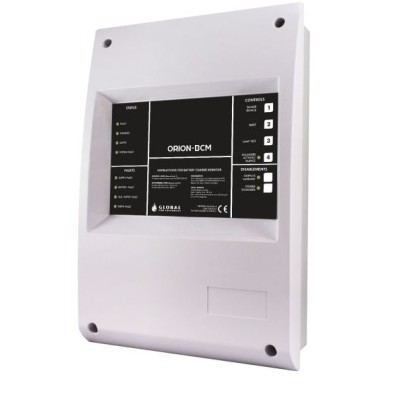

Global Fire Equipment BCM-ORION-LSC 28V DC 1A Battery Charger with GFE-LSC

Please note: This product is now obsolete. Please contact us for further information.

Global Fire Equipment BCM-ORION-LSC 28V DC 1A Battery Charger with GFE-LSC

The BCM-ORION-LSC is a Self-Contained EN54-4 certified Battery Charger Module with a Conventional Sounder Circuit driver that is designed to be also controlled and monitored through GFE addressable loop. Additionally, it houses internal Alarm and Fault relays.

With a simple interface to the analogue detection loop of any of our GFE analogue addressable panels, the BCM-ORION-LSC provides an effective and practical remote Conventional Sounder Circuit increasing Alarm Power Output Capability.

Activation of sounder output can be programmed in addressable system cause-effect logic and directly at the ORION-BCM (access code required).

An enhanced internal monitoring system continuously monitors all parts of the system ensuring proper fault detection and warning. Additionally, to local notification, status is also reported to addressable system.

• Sounder Circuit Integrity Fault
• Battery Charger Fault (voltage level and charging behaviour)
• Mains Fault (voltage level) and Earth Fault
• Output Supply Voltage Level
• Communications Fault (On the Addressable Panel)
• General System Fault (by the means of independent watchdog system)

Key Features

• Direct activation inputs over the Fire Relay and Sounder Circuit
• One supervised Conventional Sounder Circuit
• Dedicated battery charger (Secondary Supply) for Sounder Circuit and Auxiliary Power
• Addressable Loop Interface with fault report feedback (supervision) and sounder acknowledges (control)
• Two relays output for Fault (NC) and Fire (SPDT) signal - unmonitored
• Supervised 24V Supply Output with 900mA capability
• EN54-4 certified
• Comes with GFE-LSC, EN54, Max. 2 x 7Ah Batteries
