Fireclass 557.202.708FC FC410MIM + Fixing Kit for FireClass 1.9A/7Ah PSUs

Fireclass 557.202.708FC FC410MIM + Fixing Kit for FireClass 1.9A/7Ah PSUs

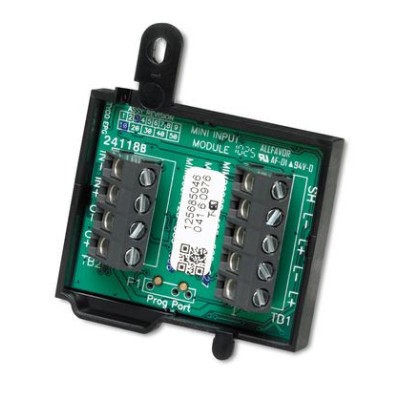

The 557.202.708FC is a FC410MIM Addressable Mini Input Module and Fixing Kit designed for the Fireclass 1.9A/7Ah Power Supply Units.

The FC410MIM Mini Input module is designed to monitor fire contacts in extinguishing system control, ventilation control, fire door control etc. It is built for fitting in small devices that is required to be monitored for fire, fault or warning.

The module provides one identifiable detection spur which is capable of monitoring multiple normally open contacts or a single normally closed contact. The module can be mounted in any electrical enclosure with sufficient depth to accommodate it and the contacts monitored by the IN+ and IN- terminals. The remote LED (if required, not supplied) must be located within the same electrical enclosure.

Key Features

• Supplied with fixing kit
• Designed for us with Fireclass 1.9A/7Ah Power Supply Units
• Small size
• Operating voltage: 20 – 40V dc
• Relative Humidity: Up to 95%
• RH monitor:100 Ohm
• End Of Line Monitor Value: 200 Ohm
