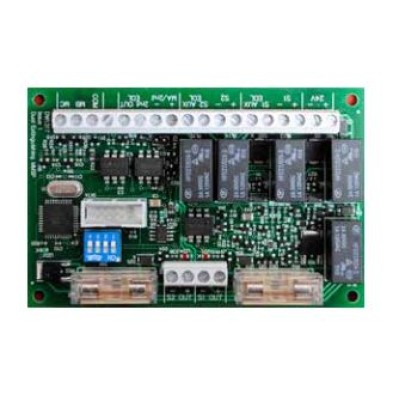

Fireclass 576.501.173FC Fire-Cryer® Plus Extinguishing PCB

Fireclass 576.501.173FC Fire-Cryer® Plus Extinguishing PCB

The Fire-Cryer Extinguishing Controller (EP2) allows the integration of Fire-Cryer™ sounders with gas suppression systems, delivering the proven effectiveness of voice enhanced audible signalling. The Controller can support up to four messages, with each message being elevated from one stage to the next.

The unit can also broadcast a ‘Hold’ message, providing immediate re-assurance to room occupants who may need additional time to evacuate the protected area. All voice messages and or tones must be selected and confirmed prior to an order being placed. Any message listed in the Vimpex library can be used, and custom recordings can also be provided.

The EP2 Controller is also fitted with a Jumper Link (LK1); this must be out of circuit when the software is configured for a pulsing input, and in circuit when the EP2 is being driven by relay inputs. Each sounder circuit is rated to take up to 1A, with the End of Line (EOL) resistor value dependent on the system used. Once installed, the EP2 is essentially seen by the control panel as a field device, and is monitored for faults just like any sounder would be.

The EP2 can additionally accommodate Auxiliary End of Line devices for both sounder circuits and the stage 2 input to prevent periodic EOL faults being signalled on the control panel (these must be the same impedance value as the true EOL devices). The EP2 is compatible with all Fire-Cryer products.

Key Features

• Supports up to 4 messages
• Fitted with a Jumper Link (LK1)
• Compatible with all Fire-Cryer products
