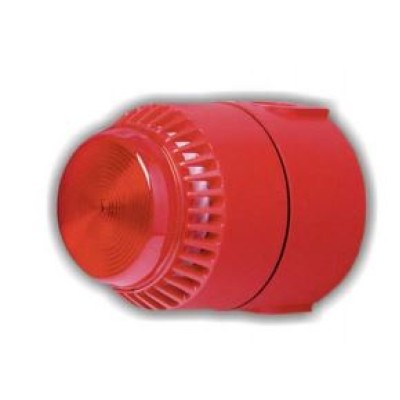

Fireclass 20-118FC Combined Roshni Sounder / Strobe Complete with Deep Base IP65 VID

Fireclass 20-118FC Combined Roshni Sounder / Strobe Complete with Deep Base IP65 VID

The 20-118FC is a combined sounder and beacon which combines the features of the Roshni electronic sounder with a fully integrated Xenon beacon. These sounders are fully compatible with all Roshni tones. They are available in red, with red lens.

A flexible alarm sounder for Fire and Security applications complete with volume control and dil switch to provide 32 tones. All Roshni sounders have synchronised start for self-synchronisation without third wire.

The unit is weather resistant to IP65.

Key Features

• Deep Base
• IP Rating: IP65

Specification

• Operating Voltage: 18 to 30Vdc
• Typical Current: 68mA @ 24Vdc
• Flash Energy: 0.7 Joules
• Flash Frequency: 60 per minute
• Tones: Roshni Tones 3 & 14
• Sound Output: 101dBA@1m
• Volume Adjustment: 0 to -20dB
• Operating Temperature: -10°C to +55°C
• Dimensions (dia. x depth): 93 x 92 mm (shallow) 93 x 121 mm (deep)
