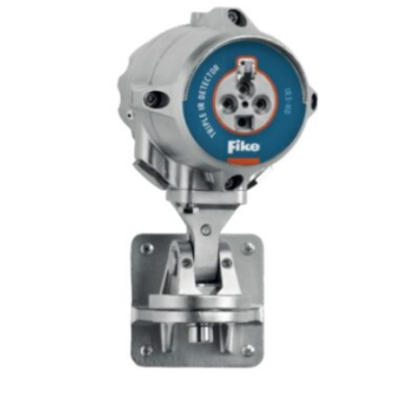

Fike FIK-IR3-HD-AS11 Triple IR Detector With HD Video Output

Fike FIK-IR3-HD-AS11 Triple IR Detector With HD Video Output

The IR3-HD flame detector provides ultra-fast response, high performance and reliable detection of all types of hydrocarbon fires (visible and non-visible).

The detector addresses slow growing fires as well as fast eruption of fire using improved triple IR (IR3) technology. It operates in all weather and light conditions with highest immunity to false alarms.

Key Features

• High Immunity to False Alarm
• Extreme sensitivity – up to 260 ft. (80m) for a 1 ft2 (0.1m2) n-heptane pan fire
• Ultra-fast detection mode – detection within 40 milliseconds for fireballs or explosions
• 1.2 second detection time – for 1 ft2 (0.1m2) n-heptane pan fire at up to 50 ft. (15m) distance
• HD video output with Automatic HD video recording of fire events. Data/Event logger: Alarms, faults and other relevant events are logged to non-volatile memory
• Built-in-Test (BIT) – Automatic and manual self-test of window cleanliness and the overall operation of the detector
• Window heater to avoid condensation and icing
• Tilt mounting bracket can be connected either above or below the detector
