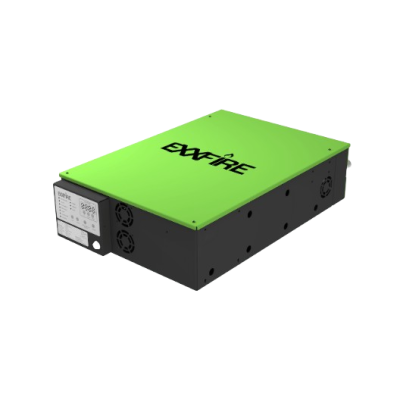

Exxfire ExxFire-2250 CNF Fire Suppression System

Exxfire ExxFire-2250 CNF Fire Suppression System

Integrated smoke detection and fire suppression system for small enclosures up to 4.5 m3. Possible to interconnect up to 8x units for a protected total volume of 36 m3.

Aspiration detection

The three optical sensors are the most sensitive smoke detectors in the market. Our Votexx software combines the readings of each detector and optimise them to prevent false alarms. An electrical fan samples the air continuously from the protected volume, providing fast smoke detection.

Non-pressurised nitrogen gas storage technology

The system provides 3 Cool Gas Generators capable of producing 750 l or 0.9 kg of nitrogen each, at ambient temperature to secure 4.5 m3 or 159 ft3. The low pressure and low noise level gas output does not interfere with the integrity of the IT equipment. This type of gas storage is maintenance free with a shelve life of 10 years.

Flexible user interface

The User Interface shows full system status, fault codes, mute and disable. The User Interface can be placed on 3 positions on the system to provide optimal access.

Key Features

• Aspirating smoke detection
• 3 optical smoke sensors
• Door switch/MAB input/3 dry contacts
• Mains powered
• LED/Fault numeric display
• Flexible User Interface  positioning
