C-Tec PDA200E AKW2/H Hearing Loop Kit for Place of Worship with Handheld Radio Microphone (200m2)

C-Tec PDA200E AKW2/H Hearing Loop Kit for Place of Worship with Handheld Radio Microphone (200m2)

Hearing loop systems allow hearing impaired people to hear more clearly. Most hearing aids have a ‘T’ or ‘MT’ switch which allows them to pick up the electromagnetic field generated by a hearing loop system. The hearing aid converts this signal into a sound suited to its user’s specific hearing requirements.

Any person with a hearing aid positioned within or near the loop can hear the loop signal by switching their hearing aid to the correct position, allowing them to participate more effectively in general conversation, ordering goods or services, listening to public performances, etc.

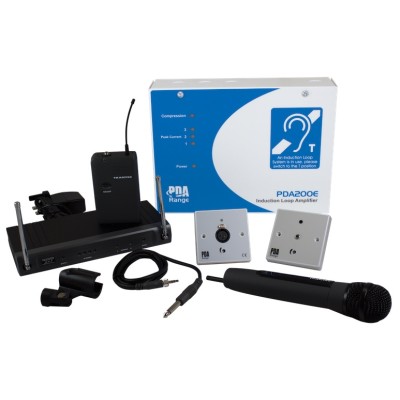

Includes a PDA200E hearing loop amplifier, AMR/HA handheld radio microphone, APJ outreach plate, APXM outreach plate (for use with existing mics) and 2 x 6m of Belden cable. Ideal for creating a high-quality hearing loop system for a TV or Music lounge.

Key Features:

• Wall-mountable PDA200E amplifier capable of driving a perimeter loop of up to 200m2.
• Internal drive, level and metal compensation controls.
• Two balanced / unbalanced line level inputs.
• One microphone input with 12V phantom power for electret microphones.
• Full compatibility with the Outreach plate audio input extension system.
• Fully compliant with BS EN 60118-4 when correctly installed.
• AMR/HA handheld radio microphone kit includes receiver, transmitter, PSU and 4 selectable frequencies.

Technical Specification:

• Induction Loop Type: Wall mounting, requires fixed mains wiring
• Coverage: 200m2 approx.
• Dimensions: W 273 x H 200 x D 77mm (amplifier only); 2.82kg
• Inputs: 1 x Microphone, 2 x Line/Outreach
• Indicators: Input level; Power; Compression; Peak Current (3,2,1)
• Controls: Metal Compensation, Input level, loop drive

Please Note: the 'AK' range of hearing loop kits don't come with loop cable, please use 1mm2 single core cable such as C-Tec's LOOP2/W cable.
