JP8 8W Maintained High Frequency IP65 Bulkhead Fitting

This range is no longer available, please see our LED Range.

JP8 8W Maintained High Frequency IP65 Bulkhead Fitting

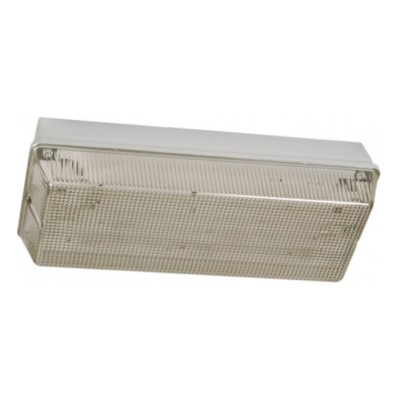

The JP Light is a general purpose, emergency luminaire. It’s ideal for arduous interior and all exterior environments and suitable for industrial applications, comprising a moulded, and self-extinguishing polycarbonate base and fitted with a clear prismatic diffuser, the JP Light is suitable for use on escape routes. It passes the 850°C hot-wire test, as defined by ICEL. The diffuser is attached by captive screws and features a gasket to the base to provide a seal to IP65.

The gear tray is hinged for ease of installation and is easily removable to allow first fix of the base. Cable knock-outs are provided in the ends, together with a BESA entry in the base, complying with the requirements of EN60598-2-22 and making the JP Light suitable for incorporation into an emergency lighting system complying with BS5266-1:2005.

The JP Light can be fitted with universal legend kits (part no. ULK) making them suitable for use as an external IP65 exit sign. Opal diffuser, security screws, wires guards accessories available. Switchable, Maintained, Non-Maintained and Sustained versions available together with 110v AC input for use in temporary construction sites.

Key Features:

• Can be readily recessed with the optional recessing flange
• IP65 (Weather-proof)
• Vandal Resistant
• IP65 Exit Signs
• Polycarbonate Base
• Self-Contained
• Prismatic Diffuser
• Hinged Gear Tray
• JPD – Die-Cast Base
