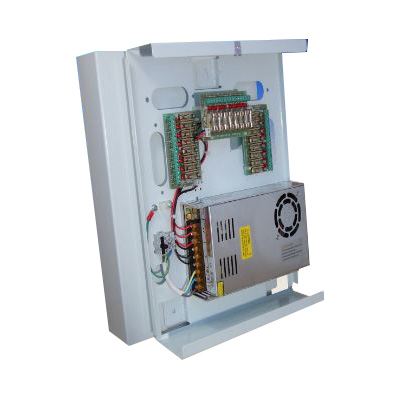

Elmdene VRS1220000-24-S 12V dc 20A (24 x 0.8A) Boxed CCTV PSU - Clam Lid

Please note: This product is now obsolete, please contact us for further information.

Elmdene VRS1220000-24-S 12V dc 20A (24 x 0.8A) Boxed CCTV PSU - Clam Lid

A boxed switch mode power supply unit providing 12V dc @ 20A, ideal for CCTV applications.

Featuring a regulated 12V dc SMPSU module, continuously supplying full rated current to load via 24 x 0.8A fused outputs, while the universal mains input voltage enables the power supply to be used across a wide geographical area. The highly efficient switch mode design generates less heat and ensures low operating costs. Output Voltage can be adjusted between 11.5V and 15V dc via an on-board potentiometer.

New to Elmdene’s popular Vision CCTV power supply range are two new powerful CCTV boxed PSU’s. Rated at 16A and 20A with multiple fused outputs they are ideal for multi-camera installations.

A potentiometer on the power module also allows adjustment of the output Voltage, which can assist when witnessing Voltage drop issues over longer cable runs.

Housed within a sturdy wall enclosure there are ample cable entry points on the rear of the enclosure, which are easily accessed due to the extra height provided by the enclosure standoff mounts.

Individual circuit protection is provided by 20mm fast blow fuses mounted on the Fused Output Modules (FOM’s). To complement the fuses, the FOM’s also feature ‘fuse health’ LEDs which are illuminated to indicate a channel is healthy, offering quick diagnosis of a blown fuse.

The units have been designed to complement the existing Vision products and offer all the benefits of the range such as high efficiency switch mode operation, reliability and a modular construction to make servicing easy.

Key Features

• CCTV Switch Mode Power Supply
• Regulated 12V dc
• 24 x 0.8A fused outputs
• High quality, sturdy enclosure
• Clam lid
• Fully regulated 12V dc output
• Individual ‘fuse health’ LED indication
• High efficiency and cost effective switch mode technology
• Full rated current to load
• Electronic short-circuit protection
• 3 year warranty
