Elmdene ACCESS-PSU Access Control (Small Enclosure) 13.8Vdc 2A

Elmdene ACCESS-PSU Access Control (Small Enclosure) 13.8Vdc 2A

This range has been specifically designed to house most common access control door controllers.

With different power options and enclosure sizes the range offers the installer a PSU for a variety of applications.

All models offer fault signalling and can charge a 12V standby battery to provide backup power on a mains failure.

Multi-fused outputs are provided to allow the installer to protect individual circuits as required.

All models possess a mains fail relay output while the ACCESS-PSUx models also offer additional Battery Monitoring and Deep Discharge Protection.

The MULTI-ACCESS models are provided with a unique hinged cabling system and can provide either 12V or 24V whilst also offering an independent ancillary relay that can be used for applications such as a ‘Fire’ door release relay.

Key Features

• PCB standoffs supplied for common A/C boards
• Unique enclosure design (MULTI-ACCESS-x)
• Cost effective switch mode technology
• Front & rear enclosure tampers
• Mains Fail relay output
• Battery Monitoring (2A & 4A versions)
• Volt-free fault outputs (2A & 4A versions)
• Independent ancillary relay (8A versions)
• Switchable 13.8V / 27.6V dc output (8A version)
• Full rated current to load + 0.5A battery charging
• 90 to 264V ac range
• Electronic overload protection
• Mains transient protection
• LED Fault indication
• Screen printing and bespoke models available on request
• 3 year warranty
• 13.8V dc 2A BM SMPSU to fit 1 x small controller Enclosure size 275H X 330W X 80D , Max battery 12V 7Ah

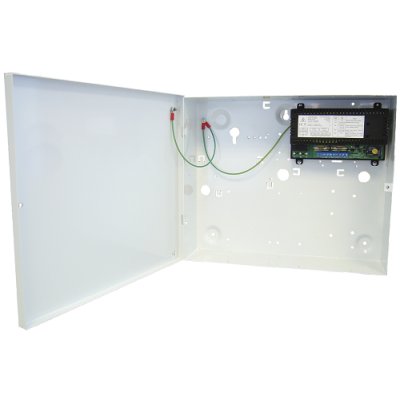

Please note: The image is for illustrative purposes only. Please contact us for further information.
