E2S SONFL1X Sonora Xenon Strobe

E2S SONFL1X Sonora Xenon Strobe

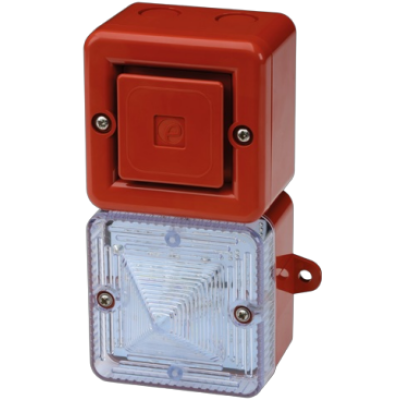

The SONFL1X features the 100dB(A) SONF1 alarm horn sounder combined with the L101X Xenon strobe beacon. The compact, robust housing is ideal for all general signalling applications including fire, security and process control.

The 5 Joule Xenon strobe generates over 200 candela of light output. DC versions have multiple flash rates selectable during installation. Sounder & beacon may be connected from a single supply for simultaneous operation or from separate.

Key Features

• Automatic synchronisation on multi-sounder system.
• High output Xenon beacon
• DC voltage units feature multiple flash rates.
• Continuously rated.
• Stainless steel fixings.
• Mounting via internal BESA compatible fixing positions or via external mounting lugs.
• Duplicate cable terminations (in & out for daisy-chain installations).
• Tropicalisation available on request.
• Available with custom tone configurations and frequencies.
• 12Vdc, 24Vdc & 24Vac, 115Vac, 230Vac
• 5 Joule
• Effective intensity 200cd
• Available with Amber, Blue, Clear, Green, Magenta, Red & Yellow lenses

Approvals

• VdS approved: EN54-3 and EN54-23 (CPR 305/2011/EU).
• UL & cULus approved: General signalling use.
• GOST-R approved. Cert: POCC GB-JB05-H00144.
• Marine Equipment Directive (MED) Certificate: MEDB00001EH
