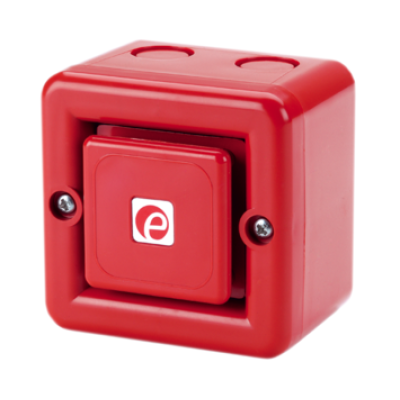

E2S SON2 Sonora Alarm Sounder

E2S SON2 Sonora Alarm Sounder

The SON2 is a compact, high output, 104dB(A) alarm sounder. Low current consumption and high SPL in a robust fire retardant housing ensure the SON2 is suitable for all general signalling applications including fire, security and process control.

The SON2 features 32 alarm tone frequencies and a total of 3 remotely selectable alarm stages/channels. The wire to base termination simplifies installation and provides duplicated terminals.

Key Features

• Automatic synchronisation on multi-sounder system.
• Continuously rated.
• Stainless steel fixings.
• Duplicate cable terminations (in & out for daisy-chain installations).
• Wire to base installation
• Tropicalisation available on request.
• Available with custom tone configurations and frequencies.
• 24Vdc (10-30Vdc) & 24Vac,115Vac, 230Vac
• 50/60Hz
• Max. 105dB(A) @ 1m - 96dB(A) @ 10ft/3m
• 32 alarm tones with 3 stages/channels
• 86.0mm x 86.0mm x 85mm
• 3.39” x 3.39” x 3.35”

Approvals

• GOST-R approved. Cert: POCC GB.JB05.H00144.
