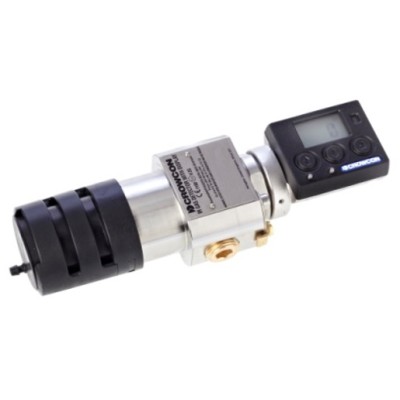

Crowcon IRmax Compact Infra-Red Gas Detector with Fixed Display

Crowcon IRmax Compact Infra-Red Gas Detector with Fixed Display

The IRmax is a compact, low power and highly rugged infrared gas detector, that delivers rapid, fail-safe detection of methane, butane, propane and many other hydrocarbon gases and vapours. The reliability of IRmax has been proven in hot, cold, wet and saline environments, making it ideal for use offshore. Unlike conventional IR gas detectors, IRmax does not utilise heaters to prevent condensation on windows and mirrors.

IRmax’s unique STAY-CLIR optical components are treated with a highly durable coating that prevents faults due to condensation. As IRmax contains no components for artificially heating optical surfaces, power consumption is dramatically reduced, requiring only 1W of power, typically 75-90% lower than conventional IR gas detectors.

IRmax display Exd ia certified infrared (IR) gas detector for hydrocarbon gases and vapours. Supplied fitted with an IR Display module which indicates operating status and enables non-intrusive calibration. IRmax is compatible with any 4-20mA control system and is constructed from 316 stainless steel with M20 or 1/2"NPT cable entry. IRmax with a Fixed IR Display is ATEX and IECEx certified for use in Gas (Zone 1 & 2) hazardous areas (not certified for Dust zones).

Key Features:

• Compact size – requires less space, effort and time to install
• Various installation options – can be wall mounted, fitted to a 50mm (2 inch) pipe or connected to an auxiliary junction box using a choice of mounting accessories
• Industry standard 4-20mA output – IRmax is compatible with virtually any control system
• Remote non-intrusive calibration – the IR display can be mounted up to 30 metres from the IRmax and test gas can be applied without requiring direct access to the detector
• Hand-held Intrinsically Safe calibrator – IRmax detectors fitted with an I.S barrier module can be checked and calibrated using an I.S calibration accessory
• STAY-CLIR optics – prevents condensation on optical components
• Low power – IRmax only consumes 1W of power, enabling small power supplies and battery back up systems to be used
• Automatic optical obscuration monitoring – minimal routine maintenance keeps costs to a minimum

Please note: This product range is available in a wide variety of different options. If none of the above models are suitable for you, or if want to know more about the Crowcon products we stock and distribute, please Contact Us or call us on +44 (0)1254 207532 and a member of the team will be happy to assist with your requirements.
