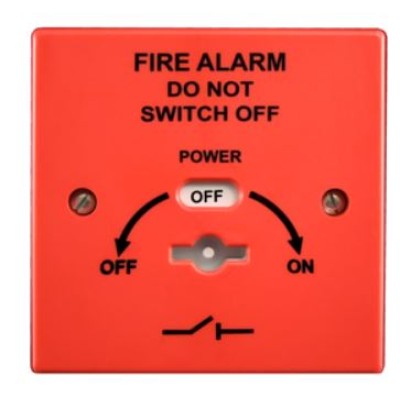

Cranford Controls 400-220RB Mains Isolator Switch Complete with Key Switch and Green LED Indicator - Red Body

Cranford Controls 400-220RB Mains Isolator Switch Complete with Key Switch and Green LED Indicator - Red Body

The T2 400-220RB is a mains isolation key switch designed for use with fire alarm systems to safely isolate the mains supply.  It features a 2 position key switch with a dedicated key, which means that it can operated by authorised personnel only and cannot be tampered with. The key is removable in both ON/OFF positions. An internal fuse is also provided for protection. The fuse cannot be removed without taking the cover off.

Key Features

• Working Voltage: 230V AC
• Switch Contact Rating: Double Pole 250V AC 8A
• Fuse Rating: 4A to 6A Fast (20mm x 5mm) - Supplied With 4A Fuse
• Housing Size: W 86mm x L 86mm x D 58mm
• Works in accordance with BS 5839 PT.1.2013 - Due to this, both the live and neutral supply is switched (double pole)
• Key removable in both on/off position
• Anti-tamper
• Internal fuse provided for protection
• Fuse cannot be removed without taking the cover off
• When in the off position the fuse is disconnected from the supply
• Compliant mains safety isolator key switch for fire alarm systems
