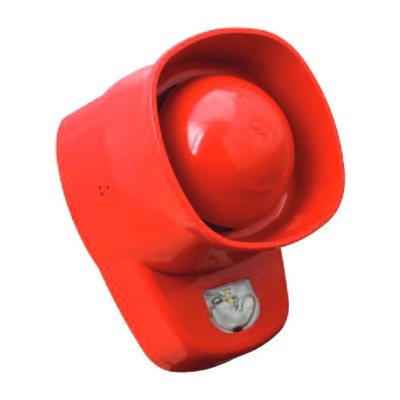

Cooper Fulleon Symphoni LX Red Body with Red Flash

Cooper Fulleon Symphoni LX Red Body with Red Flash

The Symphoni LX Wall is a durable sounder beacon that is certified to EN 54-23. Boasting impressive performance and durable design, it ensures reliability and energy efficiency.

Its high sound output makes it suitable for open areas or where there is higher than normal background noise.

The patented long life LED lens optics used in the LX have been developed specifically for the VAD EN54-23 standard.

It uses modern 'thick-mould' injection moulding techniques and innovative cylindrical output to achieve the correct level of illumination while keeping power consumption as low as possible.

Developed with installation in mind, the Symphoni LX Wall base can be retro-fitted to any conventional Symphoni horn product in the Eaton range. Save time and money by simply upgrading to an LX Wall base.

The Symphoni LX Wall visual alarm device (VAD), has been designed using innovative piezoelectric technology. This results in a highly efficient product that uses a current as low as 15-30mA making it a highly efficient solution.

The 2nd generation of the LX now incorporates soft-start technology. This innovative feature constantly monitors the available voltage to give zero start up surge on the line, allowing maximum product loading. It can also detect line overloading and will indicate the fault with a rapid double flash.

As well as European EN54-23 certification, the RoLP LX Wall visual alarm device (VAD) has country-specific AFNOR, VdS, CNBoP and AS certifications, giving you additional product confidence.

Key Features

• Conforms with EN 54-23 (meets the required illumination 0.4lux/m² over entire area)
• LED technology for long service life and low current consumption
• Unique optics for light management, with lens design that optimises light dispersal, minimising power wastage
• Up to 7.5m coverage volume which reduces the number of devices required to cover an area
• Coverage switch feature - For smaller areas switch down from 7.5m to 2.5m, reducing power consumption by up to 50%
• Wide input voltage range for flexibility in system design
• Flash rate switch feature - Reduce from 1Hz to 0.5Hz to reduce power consumption by up to 50%
• Soft start up means reduced current peak at start up, thus reducing circuit loading (beacon only)
• Locking Base to prevent easy removal of device
