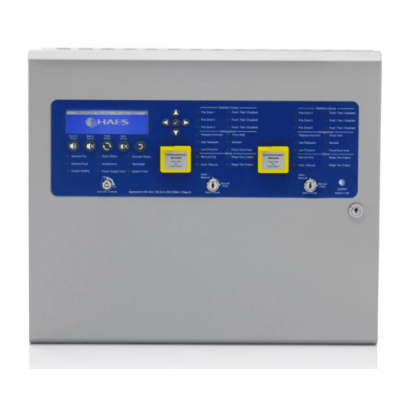

Haes ESG-1003 Esprit Ext Control Panel Dual Flood Area 3.4A PSU

Haes ESG-1003 Esprit Ext Control Panel Dual Flood Area 3.4A PSU

Dual flood area Automatic Extinguishant Release control panel with integral 3.4A power supply. Esprit-G control panels are fully configurable for extinguishant release scenarios including flexible zone voting for the gas release and programmable countdown timers to suit the exact requirements of the site. A large graphical display accommodates an easy-to-navigate menu system.

Key Features

• Dual flooding areas
• 6 detection zones
• Approved to EN12094-1, EN54- 2, EN54-4
• Fully configurable zone voting for gas release
• 6 programmable sounder circuits
• Configurable sounder delays
• Zero time delay option for manual call points
• Compatible with IS barriers
• Non-latching zone input option
• Extinguishant delay 0-60 seconds
• Extinguishant duration 1-300 seconds
• Flooding time 60-1800 seconds
• Extract time 1-900 seconds
• Graphical back lit LCD display
• Access controls via key switch or code entry
• Time and date stamped event log
• Alarm counter
• Company logo can be programmed in display
• RS 485 communications for remote status units
• Optional key switch status control
• Fire, fault & stage signal relays
• 2 amp actuator circuit
• Hold, abort, flow switch, manual release, mode control and pressure switch monitoring inputs
• 3.4 amp PSU for 18Ah batteries
