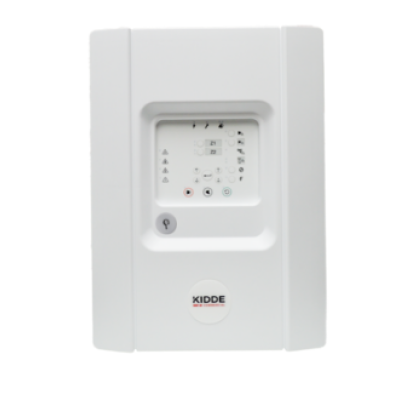

Kidde NC-PF2-SC Conventional Fire Panel With UI & Scandinavian Key - 2 Zone

Kidde NC-PF2-SC Conventional Fire Panel With UI & Scandinavian Key - 2 Zone

The New Conventional fire control panels offer state of the art architecture in configurations that deliver an uncomplicated solution for small to mid-sized conventional applications. With their clean and attractive contemporary design, they fits with any decor. The basic and intuitive user interface with icons make easy their application everywhere without an additional language kit required.

With support for multiple lines of conventional detectors and accessories, these quick-to-configure systems offer versatility that benefits building owners and installation/maintenance companies alike.

The Panel

The NC-PF2-SC is a conventional fire alarm control panel with Scandinavian key support. It is supplied with 2 zones that support up to 32 devices per zone, as well as up to 2 supervised relay outputs dedicated to sounder control. In addition 2 conventional relay outputs dedicated to common fire and fault conditions, as well as two user configurable inputs for monitoring and control are available.

Options

The panels support 2 types of auxiliary relay boards, one with 4 standard relays, and one with 4 supervised relays. With these boards the panel outputs may be expanded with up to 8 additional outputs.

Approvals & Compliance

The product line carries the following accreditations:

• EN54:2, EN54:4 and CE approved
• CPD certified
• NEN2535, NBNS21-100 and BS5839-1 compliant
• WEEE compliant
• RoHS compliant
• Type class conditions: 3K5 of IEC 60721-3-3

Key Features

• Modern, elegant design with basic and intuitive user interface with icons.
• Easy removable parts for quick and clean installation
• Default regional setup modes
• Normal, head-out & intrinsically safe zone support
• Supervised alarm notification outputs
• EN54 compliant potential free fire & fault relays
• Class change, day/night & remote reset facilities
• Auxiliary 24VDC supply output with reset support
• Default support for special functions such as: - EN54 compliant user access levels - mixed zones - full front panel diagnostics - one-man walk test - CleanMe™
• Auxiliary standard & supervised relay output boards
• Networkable up to 64 zones
• No language kit inserts required
