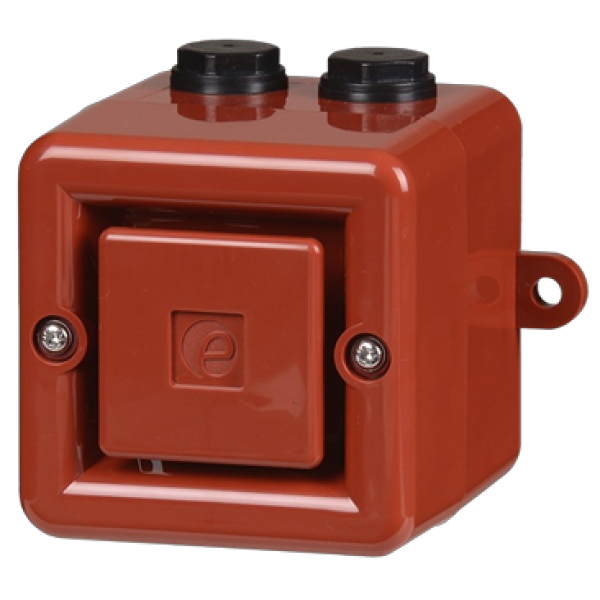

E2S A100DC024MA0A1R A100 Alarm Horn Sounder

E2S A100DC024MA0A1R A100 Alarm Horn Sounder

The A100 is a compact, high output, 110dB(A) alarm sounder. CPR complaint, EN54-3 tested and UL/cUL and ULC approved. Featuring 64 alarm tone frequencies and 4 remotely activated stages/channels.

Low current consumption and high SPL in a robust fire-retardant housing ensure the A100 is suitable for all signalling applications including fire, security and process control. The A100 is a member of the versatile AlertAlarm family of industrial alarm horn sounders – also available with Xenon, AL100X or LED beacons, AL100H. SIL1 & SIL2 Route 2H compliant to IEC61508 (2010) as standard.

Key Features:

• Automatic synchronisation
• Continuously rated
• Back box options with and without mounting lugs
• Dual M20 or 1/2"NPT clearance cable entries
• Duplicate pluggable cable terminations – Class A
• Ingress protection IP66 Type 3R/13
• Conformal coated (tropicalised) electronics
• 64 alarm tone frequencies and 4 remotely activated alarm stages
• Available with custom tone configurations and frequencies
• Diode polarized for use in supervised circuits

Approvals:

• UL: UL464
• cUL: CSA C22.2 No 205-17
• ULC: CAN/ULC-S525
• UL EU: (EN54-3) UL-EU-01163-CPR
• CPR 305/2011: 2821-CPR-0107
• DNV GL-CG-0339: TAA00002ZU
• MED 2023/1667: MEDB000074G
• MER MSN 1874: MERB000074G
• USCG COA 161-002-68-0
• EAC CU TR 043/2017: B.00291/21
• EAC: RU D-GB.GA05.B.12595-20
• RMRS Marine: No. 19.00193.278
• SIL1 & SIL2 compliant to IEC61508 (2010)
• CE, UKCA
