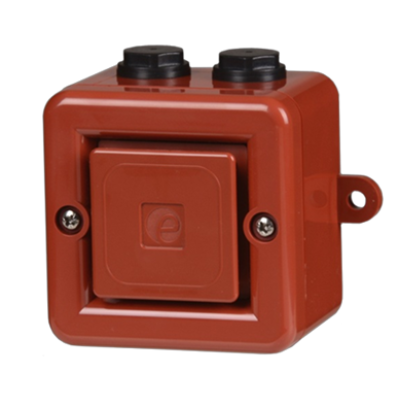

E2S SONF1DC024MA0A1R SONF1 Alarm Horn Sounder

E2S SONF1DC024MA0A1R SONF1 Alarm Horn Sounder

The SONF1 is a compact, high output, 103dB(A) alarm sounder. Low current consumption and high SPL in a robust fire-retardant housing ensure it is suitable for general signalling applications including fire, security and process control.

Sonora range offers compact audio visual signaling for fire, industrial, process control and machine safety applications. The range features low current consumption combined with high performance. The SONF1 is available with two levels of sound level output and is CPR compliant, tested to EN54-3 for fire alarm use.

Key Features:

• Automatic synchronisation
• Continuously rated
• Back box options with and without mounting lugs
• Dual M20, 1/2"NPT clearance cable entries option
• Duplicate cable terminations
• Ingress protection IP66 Type 3R/13
• 10 alarm tone frequencies with second remotely activated alarm stage
• Available with custom tone configurations and frequencies
• Diode polarized for use in supervised circuits

Approvals:

• UL: UL464A
• cUL: CSA C22.2 No. 205 – M1983
• EU CPR: (EN54-3) 2821-CPR-0285
• MED 2020/1170: MEDB00001EH
• CSFM listing: 7135-2279:0511
• EAC CU TR 043/2017: B.00291/21
• EAC: RU D-GB.GA05.B.12595-20
• RMRS Marine: No. 19.00193.278
• CE, UKCA
