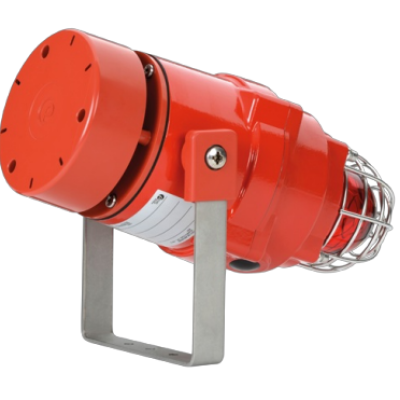

E2S BExCS110-05-R Omnidirectional Horn & Strobe

E2S BExCS110-05-R Omnidirectional Horn & Strobe

The flameproof BExCS110-05-R combination alarm horn sounder and Xenon strobe beacon with omni-directional horn is suitable for Zone 1 & Zone 2 applications and the BExDCS110-05-R version also for Zone 21 & 22.

The radial horn on the compact BExCS110-05-R distributes the audible warning signal omnidirectionally allowing the visual signal to be orientated optimally. Sound level ouputs are up to 117dB(A) at 1 metre with a choice of 32 alarm tones and 3 remotely selectable stages. Sounder & beacon may be connected from a single supply for simultaneous operation or from separate supplies for independent operation.

Key Features

• Omni-directional sound output.
• Automatic synchronisation on multi-beacon & sounder systems.
• Beacons can be set to ‘flip-flop’ alternating mode with other units on multi-beacon systems.
• Xenon tubes mechanically secured against shock & vibration
• Ratchet adjustable stainless steel ‘U’ bracket.

‘Programmable’ version available:

- 45 alarm tones

- 4 remotely selectable stages

- Any tone can be assigned to any stage

- User configurable continuous frequency tone

Approvals

• ATEX certificate: KEMA 01ATEX2223X,
• EN 60079-0 : 2006, EN 60079-1 : 2007,
• EN 61241-0 : 2006, EN 61241-1 : 2004
• IECEx certificate: IECEx KEM 10.0025,
• IEC 60079-0 : 2004 (Ed4), IEC 60079-1 : 2007 (Ed6),
• IEC 61241-0 : 2004 (Ed1), IEC 61241-1 : 2004 (Ed1)
• GOST-R certificate: POCC GB.JB05.B03365
