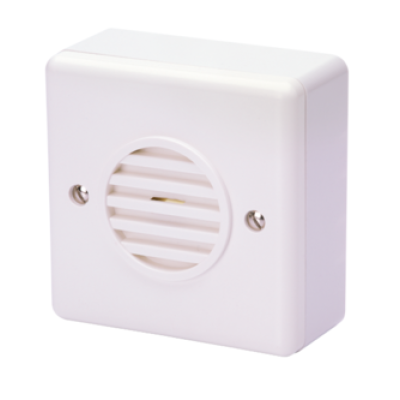

E2S BEDHEAD Alarm Sounder

E2S BEDHEAD Alarm Sounder

The BEDHEAD flush mount alarm sounder is a low current consumption device suitable for close proximity signalling in fire and security applications.

Key Features

• 24Vdc
• Max. 90dB(A) @ 1m - 81dB(A) @ 10ft/3m
• 10 alarm tones with 3 stages/channels
• White enclosure
• 85.5mm x 85.5mm x 11.0mm cover depth
• 3.37” x 3.37” x 0.43” cover depth

Specification

• Maximum output: 90dB(A) @ 1 metre [81dB(A) @ 10ft/3m]
• Nominal output: 85dB(A) @ 1m +/- 3dB – Tone 1 [76dB(A) @ 10ft/3m]
• No. of tones: 10
• No. of stages: 3
• Stage switching: Via negative supply
• Volume control: On board potentiometer
• Effective range: 10m/33ft @ 1KHz
• Voltages DC: 24V dc (10-30V dc)
• Current consumption: 8mA @ 24V dc
• Housing material: High impact UL94 V0 & 5VA FR ABS
• Colour: Red (RAL3000) & white.
• Back box: Compatible with standard back box
• Terminals: 0.5 to 1.5mm² cables.
• Operating temp: -25 to +55°C [-13° to +131°F]
• Storage temp: -40 to +70°C [-40° to +158°F]
• Relative humidity: 90% at 20°C [68°F]
• Weight: 0.06kg/0.13Ibs
