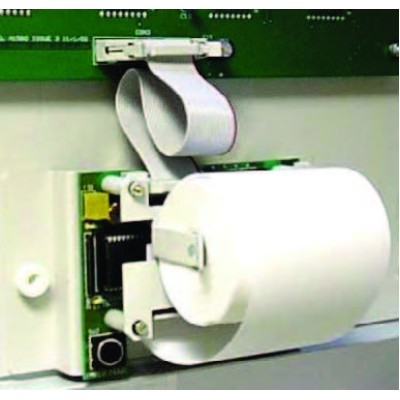

Panel Mounted Printer 2500107

Panel Mounted Printer 2500107

The CEL panel printer is a reliable easy to maintain unit, accepting standard 57mm “till roll” type paper and ink ribbons. The printer is located on the panels door using two nuts on the hinge side and one knurled nut on the other. By undoing the knurled nut the engineer may easily access the ribbon assembly for replacement.

The printer may be supplied with the panel or installed at a later date. All the required fixings, connectors and software drivers are included with the fire alarm panel. The printer is supplied complete with the ribbon cable for panel connection. The circuit board to the rear includes and engineers paper feed button and test button. The test button provides a standard test printout to check the printers’ correct operation. The paper feeds through the panels door preventing un-authorised access to the panels interior.

Features

• Ideal for use with all Control Equipment’s analogue addressable control panels
• 24 Column printer
• Reliable Epsom mechanism
• Open rear access and swing frame for easy paper and ribbon change
• Engineers paper feed and printer test controls
• Accepts standard 57mm paper
• May be supplied with panel or easily fitted later
