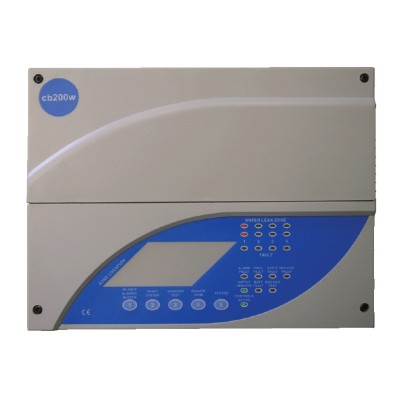

CB200W Water Leak Detection Panel (4 Zone) - 2500954

***PLEASE NOTE*** - Under the regulations only products approved to current EN standards may be CE marked for use in installation within the EU, countries other than EU are not affected.

We advise that the following products will not carry the CE marking and therefore should not be used on new installation within EU from July 1^st 2013

CB200W Water Leak Detection Panel (4 Zone) - 2500954

The CB200W panel makes use of the Hydrosense Hydrowire and Hydrosense Point Detector. The Hydrowire is best suited to areas such as floors, concealed floors, ducts and suspended ceilings. It is a flexible 4 core cable that is highly sensitive to water and available in 5M or 10M lengths (extendable in a daisy chain fashion up to 50M max.). The Hydrowire is connected via an interface control box which signals back to the panel when water presence is detected.

An end of line plug is required to be installed at the end of the cable run allowing the panel to monitor for open/short circuit conditions. One interface control box can connect to one panel zone therefore one run of cable is allowed per zone. The point detector probe is suited to areas of localised detection such as storage areas, lift shafts etc. Multiple (up to 20) detectors can connect to a zone with use of junction boxes. Each point detector has a green activation LED for easier location of the leak.

Key Features:

• 4 Detection Zones
• Works with Hydrosense leak detection equipment
• Leak zone indication
• Zone fault indication
• 4 Monitored sounder circuits
• 470 / 680 Ohm zone activation
• Fire and fault relay contacts
• Space for 2.1 battery set
