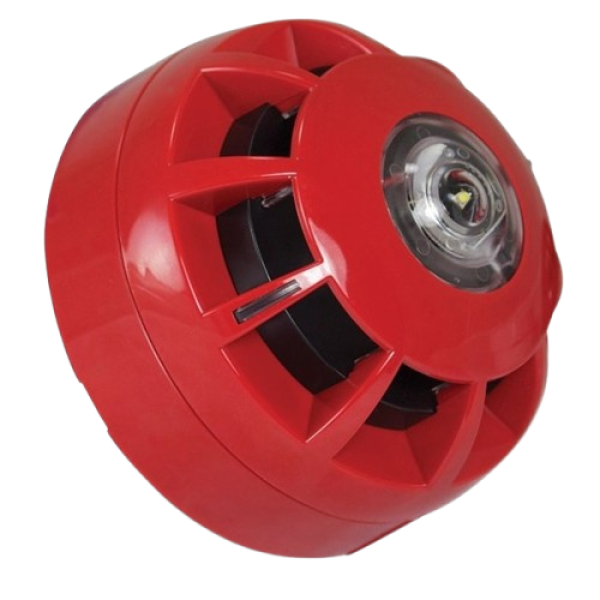

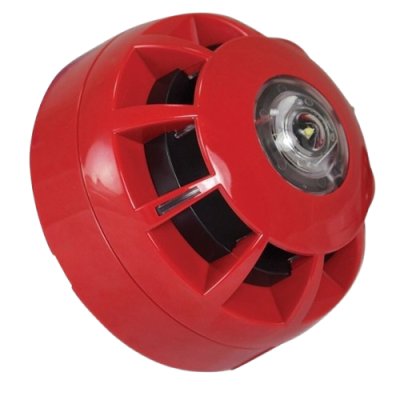

C-Tec BF458A/CX/SR Addressable Red Wall VAD

C-Tec BF458A/CX/SR Addressable Red Wall VAD

The compact W-3-3.1 Wall VAD is compatible with C-TEC's XFP/ZFP XP95/Discovery Addressable Fire Panels. It provides W-3-3.1 coverage when wall mounted, alternatively it can be ceiling mounted to provide C-3-8 coverage.

Key Features

• Third-party certified to EN54-23 (VADs) and 17 (Isolators) by Intertek
• Provides 'W-3-3.1' light distribution when wall mounted (min 0.4 lux over a 3 x 8m cylindrical area)
• Can also provide 'C-3-8' light distribution when ceiling mounted (min. 0.4 lux over a 2.4 x 3.5m cuboid area)
• Onboard short-circuit loop isolator
• 550µA quiescent current
• 10mA alarm current @24V DC
• Group addressing facility allows multiple devices to be operated simultaneously
• IP21C rated
