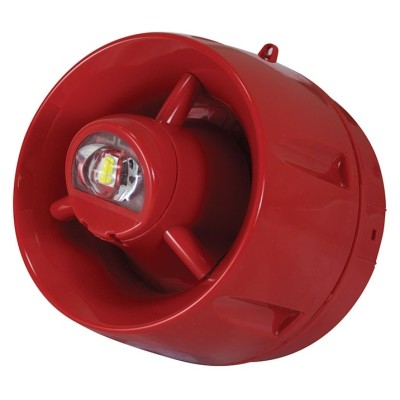

C-Tec BF433A/CX/SR Addressable Wall Sounder VAD with Shallow Base

Brand: C-Tec

Part Number: BF433A/CX/SR
Categories: Audio Visual (Addressable Fire Alarm Equipment)

£47.04 (£56.45 inc VAT)

C-Tec BF433A/CX/SR Addressable Wall Sounder VAD with Shallow Base

The Hi-Output W-2.4-8.2 Wall VAD c/w 103dB(A) Sounder with a shallow base is compatible with C-TEC's XFP/ZFP XP95/Discovery Addressable Fire Panels. It’s designed to be wall mounted in indoor areas only.

Key Features

Third-party certified to EN54-3 (Sounders), EN54-23 (VADs) and 17 (Isolators) by the LPCB
Provides 'W-2.4-8.2' light distribution when wall mounted (min 0.4 lux over a 2.4m x8.2m cuboid area)
Impressive 103dB(A) sound output @ 1m
Onboard short-circuit loop isolator
550µA quiescent current
14.5mA alarm current @24V DC (VAD lit, sounder on max)
Group addressing facility allows multiple devices to be operated simultaneously
7 selectable volume levels and up to 15 selectable tone pairs
IP21C (Type A) rated
