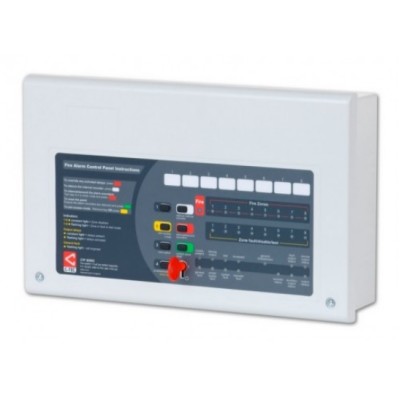

C-Tec CFP Two Wire 2 Zone AlarmSense Control Panel - CFP702-2

C-Tec CFP Two Wire 2 Zone AlarmSense Control Panel - CFP702-2

C-TEC's LPCB certified two-wire CFP AlarmSense® fire panel is designed to work with Apollo's AlarmSense® range of detectors, call points, sounders and beacons. Most conventional fire systems are designed to work with two pairs of wires per zone: one pair for detection devices such as smoke detectors, heat detectors and manual call points; the other for alarm devices such as bells, sounders or strobes. By using different voltage bands for quiescent and alarm states, AlarmSense® components can be connected to the same pair of supply wires.

When powered and controlled by the CFP two-wire fire panel, this reliable technology takes all the complexity out of fire alarm system design, leading to quicker, less expensive and more flexible installation. Indeed, research shows an AlarmSense® two-wire system can achieve a 20-25% reduction of labour over a standard four wire conventional system. AlarmSense devices are acceptable for BS 5839-1 and BS 5839-6 systems making them particularly useful for fire protection in Houses of Multiple Occupation (HMOs).

Key Features

• LPCB certified to EN54 parts 2 and 4
• Intuitive user-friendly interface with colour-coded buttons and combined keypad/keyswitch entry to access level 2
• 2, 4 or 8 AlarmSense zone circuits (dependent on model purchased)
• Four conventional sounder circuits
• Integral 1.5A EN54-4/A2 compliant switch mode PSU
• Wide range of engineering functions including zone test, coincidence, zone delay and non- latching zones
• Two on-board relays (Fire and Fault)
• Two open-collector outputs (Remote and Reset)
• ‘Class change’ and alert inputs
• Installer-friendly design accommodates easy first fix and straightforward maintenance
• Attractive flush or surface mountable plastic lid and enclosure - no bezel required
• Low quiescent current
• Multiple indicators
• End of line units included (one per zone)
• Ancillary system expansion connections provided for up to eight two-wire repeaters (one CFP761 network driver card required per system) and optional CFP relay boards
• Space for two x 12V 3.3Ah VRLA batteries
