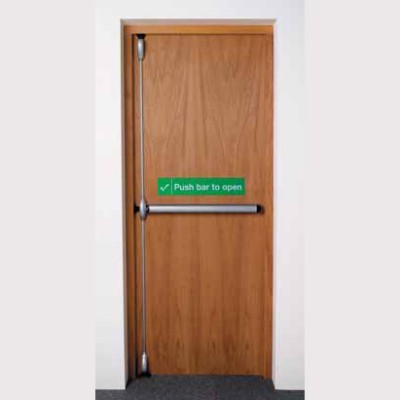

Briton 572-V-2 Two/Three Point Locking Panic Device with Upper and Lower Pullmans 840mm

Briton 570 Series Touchbar Device

Briton 572-V-2 (840mm) Two/Three Point Locking Panic Device with Upper and Lower Pullmans

Suitable for most timber, steel, and aluminium door constructions up to a
maximum mass of 200Kg and a maximum height of 2500mm. Available in two device lengths of 1200mm and 840mm which are suitable for a maximum door width of 1300mm and 940mm respectively.

The devices are suitable for doors with a minimum clear opening width down to 500mm. This can be reduced to 350mm when the side latchbolts are not required.

• Unique Touchbar Design
• Anti-thrust device - prevents unauthorized retraction of the latchbolt
• Stainless steel latchbolts as standard
• Supplied complete with adjustable strikers and spacers for accurate installation on both single and double door applications.
• Suitable for use on single doors, rebated and non-rebated double doors
• Non-handed - suitable for both left and right handed doors
• Colour Silver
• Conforms to EN 1125 Classification 37611422B
