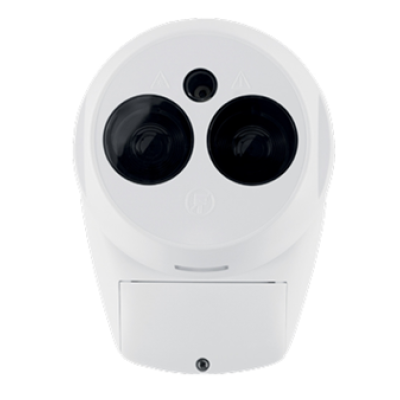

Fireray 6010-500 Fireray One Motorised Beam Detector [SAI]

Fireray 6010-500 Fireray One Motorised Beam Detector [SAI]

With no specialist tools or knowledge needed for installation and operation, the Fireray One is a standalone beam detector that prioritises ease of installation. Using the Fireray One, it couldn’t be easier to bring the benefits of beam detection to your application:

• Auto-aligns – just steer the laser onto the Reflector, then at the flick of a switch, it aligns itself. Eight times faster than previous detector
• One person installation – everything can be done by one person
• One standalone product – no specialist tools required; minimal prior knowledge and training needed.

Key Features:

• Detection range: 5 to 50 m (16½ ft to 164 ft).  50 to 120 m (164 ft to 394 ft) with Reflective Long-Range Kit
• Alignment method: Laser assisted, Auto-Alignment™ Manual alignment 3 lines
• Building Movement Tracking™: Compensates for natural shifts in alignment from building movement*
• Contamination compensation: Compensates for gradual build-up of contamination on the optical surfaces
• Light cancellation technology™: Compensates for high levels of sunlight and artificial lighting
• Optical wavelength – smoke detection: 850 nm near infrared (invisible)
• Integrated laser – laser alignment: 650 nm visible. Class 3R <5 mW
• Dynamic beam phasing: Allows beam detectors to be mounted facing each other with the reflectors in the middle. Eliminates false alarms caused by crosstalk between beams.
• Signal output: Individual alarm and fault relays (VFCO) 0.5 A @ 30 Vdc
