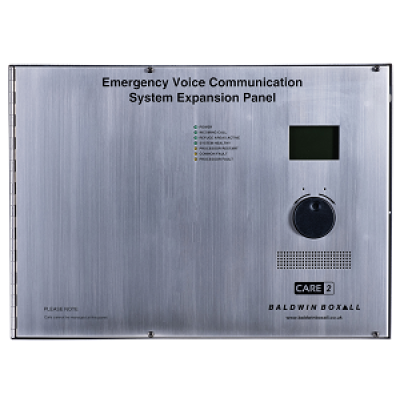

Baldwin Boxall Care2 EVC Network Expansion Panel (C2CSNEP)

Brand: Baldwin Boxall

Part Number: C2CSNEP
Categories: Accessories and Ancillary (Evacuation Voice Communication / Disabled Refuge System / PAVA)

£1,935.36 (£2,322.43 inc VAT)

Baldwin Boxall Care2 EVC Network Expansion Panel (C2CSNEP)

The Network Expansion Panel (NEP) adds to the flexibility of the Care2 EVC system. Whether you require one outstation or 256 outstations, Care2 can meet your needs.

Each 4-way panel can be expanded to 8, 12 or 16-way by means of an optional expansion kit (not factory fitted).

Key Features:

Up to 15 NEPs can be fitted on one system (14 if installing two ‘control’ panels)
Each NEP is supplied with a 4-way line card (add up to 3 expansion kits to enable 8, 12 or 16-way)
Systems with up to 256 outstations possible (larger systems can be installed, please contact our sales department)
For initial system set up and local testing prior to connection to the network, a ‘roaming telephone’ can be temporarily connected to an internal socket
At each NEP, the status of local outstations can be viewed by using the rotary encoder and LCD screen
Black or stainless steel
Surface mount (optional flush mount bezel available)
