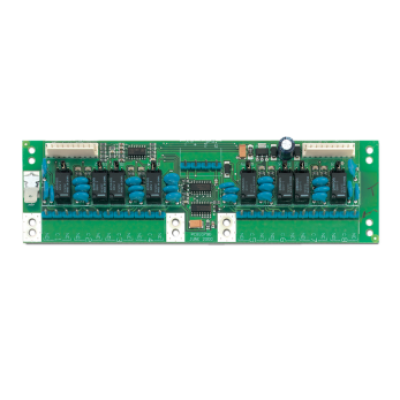

Aritech ATS1811 8-way Relay Card Grade 3, PD6662:2010 or PD6662:2017

Aritech ATS1811 8-way Relay Card Grade 3, PD6662:2010 or PD6662:2017

The 8-way clocked relay card ATS1811 provides eight single pole double throw relays with connection terminals to the common (C), normally open (NO), and normally closed (NC) contacts. The relay contacts are rated at 1 A @ 0 to 30 VDC or 300 mA @ 48 VDC. Relay cards can be connected together to provide up to sixteen relays when connected to an expander and up to sixty-four relays in a four to eight door/lift expander. A LED is provided for every relay to indicate activation.

Key Features

• Extend panel or expander with eight SPDT (NO-C-NC) relay outputs
• Plug-in using flat-cable (included)
• Compatible with Axon and Advisor Advanced panels
• Option to power with separate power supply
