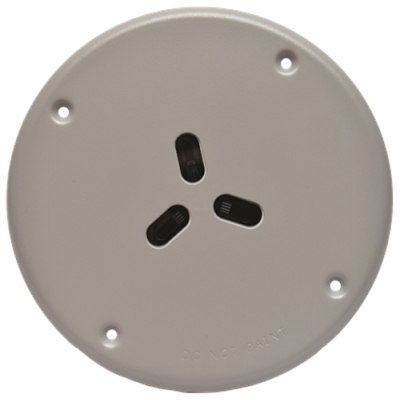

Apollo FL6100-600APO Soteria Dimension Specialist IR Optical Detector

Apollo FL6100-600APO Soteria Dimension Specialist IR Optical Detector

The Soteria Dimension Specialist Optical Detector contains two daylight filtered photo-diodes and three IR emitters in different positions and angles. Different combinations of these are used to act as smoke sensors and proximity sensors, to measure the smoke level at the detector and to detect any physical obstruction or interference of the detector.

As this detector is chamberless an IR LED emits light outside the detector. The light is scattered by smoke back towards the detector and registered by a photo-diode.

A pair of microprocessors control these sensors, setting the sensor timings and using a digital phase-sensitive detection algorithm to reduce noise and the effect of background light. They then provide digital filtering for transient rejection, compensation for drift and temperature, and ultimately make an alarm decision.

Key Features:

• Low profile design
• Utilises digital CoreProtocol communications
• Compatible with Discovery and XP95 systems
• Integrated switchable isolator as standard
• 8-way DIL switch addressing
• Drift compensation
• FasTest for quicker testing
• Tricoloured LED status indicator
• Comprehensively tested to exceed EN 54-7 and EN 54-17 standards
• Ruggedized metal face plate which is secured with anti-tamper screws
• Designed and tested to meet the requirements of Ministry of Justice specification STD/E/SPEC/038
• Independently certified to DHF TS001 for anti-ligature use in specialist areas
