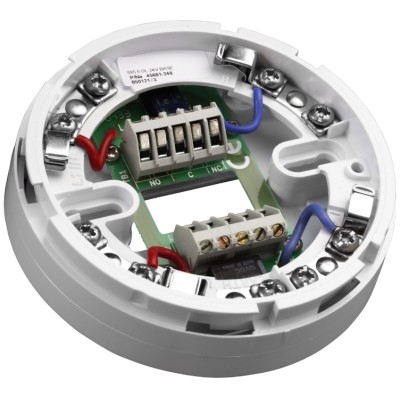

Apollo Series 45681-248APO 65 End-of-Line Relay Base - 24V

Apollo Series 45681-248APO 65 End-of-Line Relay Base - 24V

The Series 65 End-of-Line (EOL) Relay Base is intended for use with four-wire circuits and features two sets of changeover contacts and a power supervision relay.

Operation

Series 65 Relay Bases are primarily intended for use with control units using 4-wire detector supply and alarm initiating circuits. Where local codes allow, they may also be used in 2 and 4-wire circuits to provide volt-free control signals to an auxiliary system such as an automatic door closer. They are not suitable for use in systems where it is specified or required that operation of the auxiliary system shall be fail-safe and must not be used with any other type of detector.

Options

45681-247, for circuits having a supply voltage between 9- and 18-volts DC and 45681-248 for circuits having a supply voltage between 16 and 33 volts DC.

Key Features

• Detector locking mechanism
• One way fit
• Easy to wire
• Contains an earth connector
