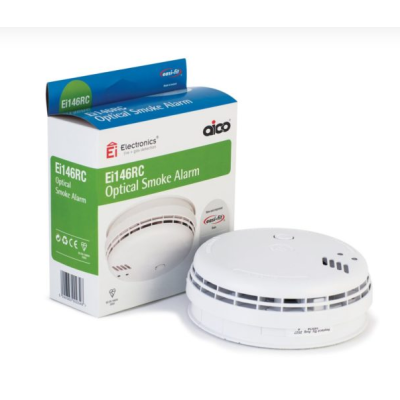

Aico Optical Smoke Alarm with Battery Back-up & Base – Ei146RC

Please note: This product is now obsolete, the recommended replacement is the Aico Ei146e Optical Smoke Alarm.

Aico Optical Smoke Alarm with Battery Back-up & Base – Ei146RC

The Ei146RC Optical Smoke Alarm is a mains powered alarm with a 9V Alkaline battery back-up and contains a large, proven optical smoke chamber.

Different alarms sensors work best at detecting different types of fire and so should be sited in appropriate rooms throughout a property. Optical alarms are best at detecting slow, smouldering fire which are commonly caused by sofas or electrical fires.

Fit in: Hallways, Landing, Livings Room, Dining Room.

By fitting an Optical alarm in these areas you are less likely to get nuisance alarms, especially if the alarm is located close to the Kitchen.

The alarm is supplied with an easi-fit base to make it as quick and simple to install. As with the rest of the 140RC Series alarm the Ei146RC Optical alarm can be interconnected with other alarms and accessories through hard wire connection or, for less mess and disruption, by RadioLINK wireless interconnection.

As this alarm contains a 9V Alkaline battery back-up, this battery will need changing over the course of its ten year life. Click here for our guide to changing the batteries.

Technical Specification

• Sensor Type: Optical.
• Supply Voltage: 230V AC, 50Hz.
• Battery Back-up: 9V Alkaline Replaceable.
• Sound Level: 85dB(A) at 3m.
• Operating Temperature: 0°C to 40°C.
• Humidity Range: 15% to 95% relative humidity.
• Button Test: Simulates the effect of smoke and checks chamber, electronics and horn.
• Self Test: Smoke chamber is automatically tested every 40 seconds and unit beeps (without red LED flash) if it is degraded.
• Insect Screen: Prevents insects or debris entering chamber (1.00mm mesh size).
• Plastic Material: UL94VO flame retardant.
• Dimensions – Product: 150mm dia. x 55mm
• Dimensions – Boxed: 155mm x 155mm x 65mm
• Weight: 325g (product only), 410g (boxed)
• Guarantee: 5 years
• Approvals: BS EN 14604:2005.
